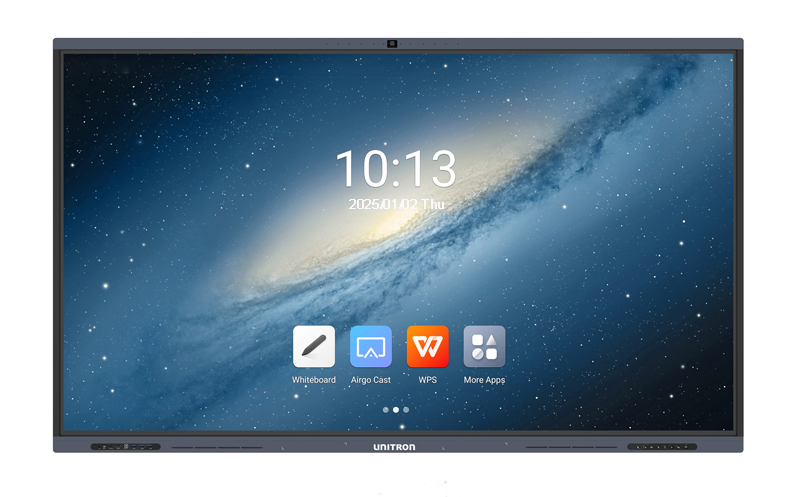

Interactive Conference Touch Display
Model:82S
| Size | Size Available | 65" | 75" | 86" | 98" |
| Panel | Display Area | 1429(H)x804(V) | 1649(H)x928(V) | 1895(H)x1066(V) | 2158(H)x1214(V) |
| Max resolution | 4K:3840(H)x2160(V) | ||||
| Viewing Angle | 178°（H)/178°（W) | ||||
| Glass | 4mm anti glare tempered glass | ||||
| Display color | 1.07B (10bit) | ||||
| Brightness | ≥350cd/m2 | ||||
| Aspect Ratio | 16：9 | ||||
| Response time | 8ms | ||||
| Andriod System | Chipset | V100 chipset | |||
| CPU | Cortex-A55*8 | ||||
| GPU | Mali-G52*4 | ||||
| RAM | 4G(8G optional) | ||||
| Hard Disk | 32G(128G optional) | ||||
| Operation System | Android 14.0 | ||||
| Windows System(Optional) | Graphics card | Intel UHD Graphics for 12th Gen Intel Processors | |||
| DDR4 ／RAM | 8G | ||||
| SSD | 256G | ||||
| CPU | I7-1260P | ||||
| System | Windows 11 pro | ||||
| Wireless sharing | Wireless sharing | Yes | |||
| Bluetooth | Bluetooth | Yes | |||
| Camera | Built-in camera | 48 million pixel Camera | |||
| Microphone | Microphone | 8 array microphone | |||
| Distance For Picking The Voice | 8M | ||||
| Touch Technology | Touch mode | Infrared | |||
| Touch point | 40 points touch | ||||
| Writing height | ≤1.5mm | ||||
| Response time | ≤5ms | ||||
| Touch Type | Fingers,passive infrared pen,active infrared pen | ||||
| Touch accuracy | ±1mm(over 90% Area) | ||||
| Output coordinate | 32767x 32767 | ||||
| Interface | Front side | Type C*(USB) x1, HDMI x1, Touch x1,USB 3.0 x2, | |||
| Rear side | RS232x1,Touch x1,HDMI x1,RJ45 x1,USB 2.0 x1,WIFI x2, | ||||
| Down side | AC switch x1,AC IN x1, Coaxial x1, Line out x1 | ||||
| Audio | Built-in stero speakers | 16W*2 | |||
| Power | Rated voltage | AC100-240V 50/60Hz | |||
| Overall power | 186.7W | 246.8W | 353W | 415W | |
| Standby Power | ≤0.5W | ||||
| Dimension | Machine Dimension | 1485*900*88mm | 1707*1025*88mm | 1953*1162*88mm | 2216*1317*108mm |
| Packing Size | 1630*1024*160mm | 1855*160*1155mm | 2095*160*1290mm | 2355*160*1440mm | |
| Weight | Net Weight | 38.2kgs | 50.6kgs | 65.1kgs | 90kgs |
| Gross Weight | 48.5kgs | 66kgs | 83kgs | 111kgs | |
| Loading QTY | 20'GP/40'GP/40'HQ (PCS) | 96/206/206 | 90/178/186 | 38/80/160 | 28/70/70 |
